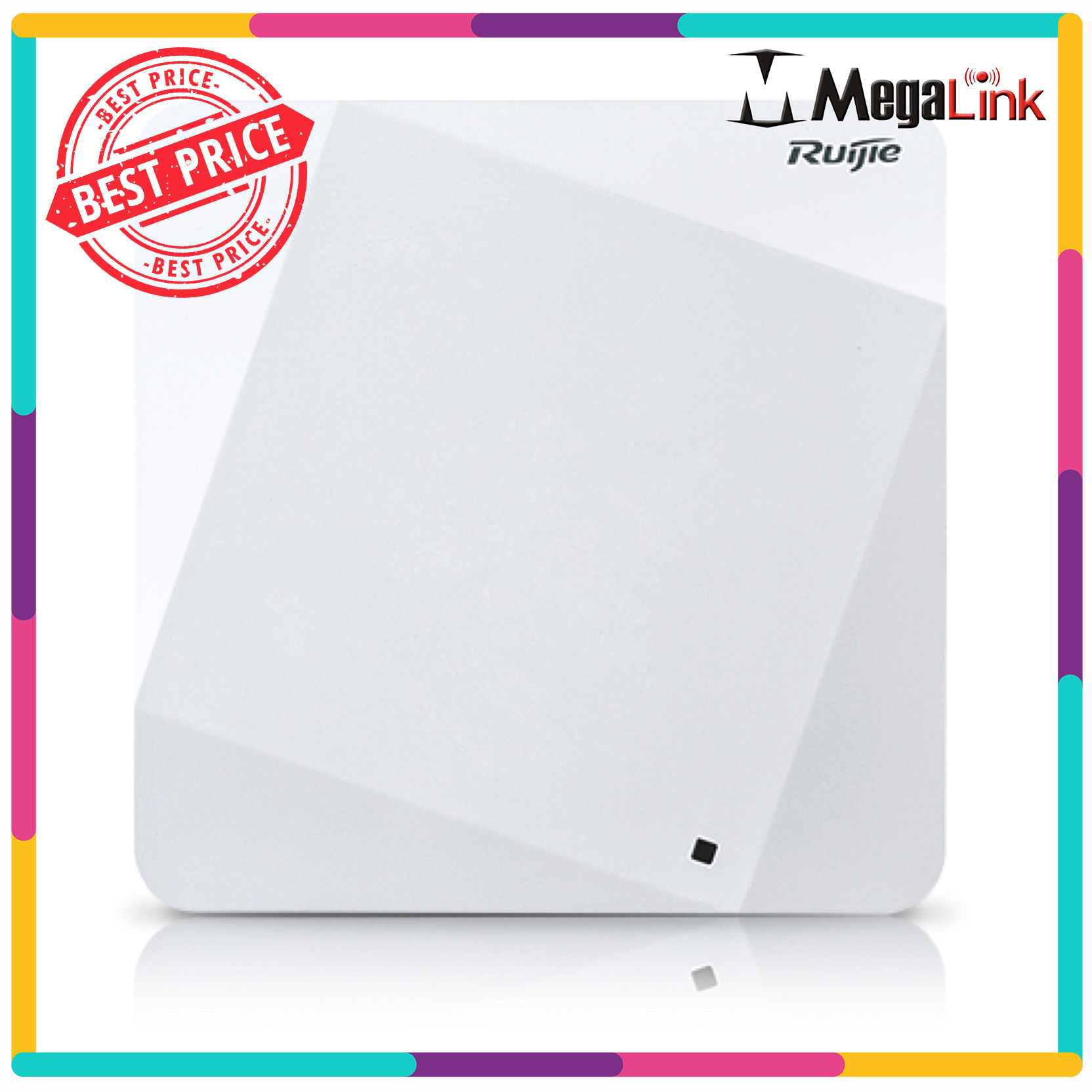

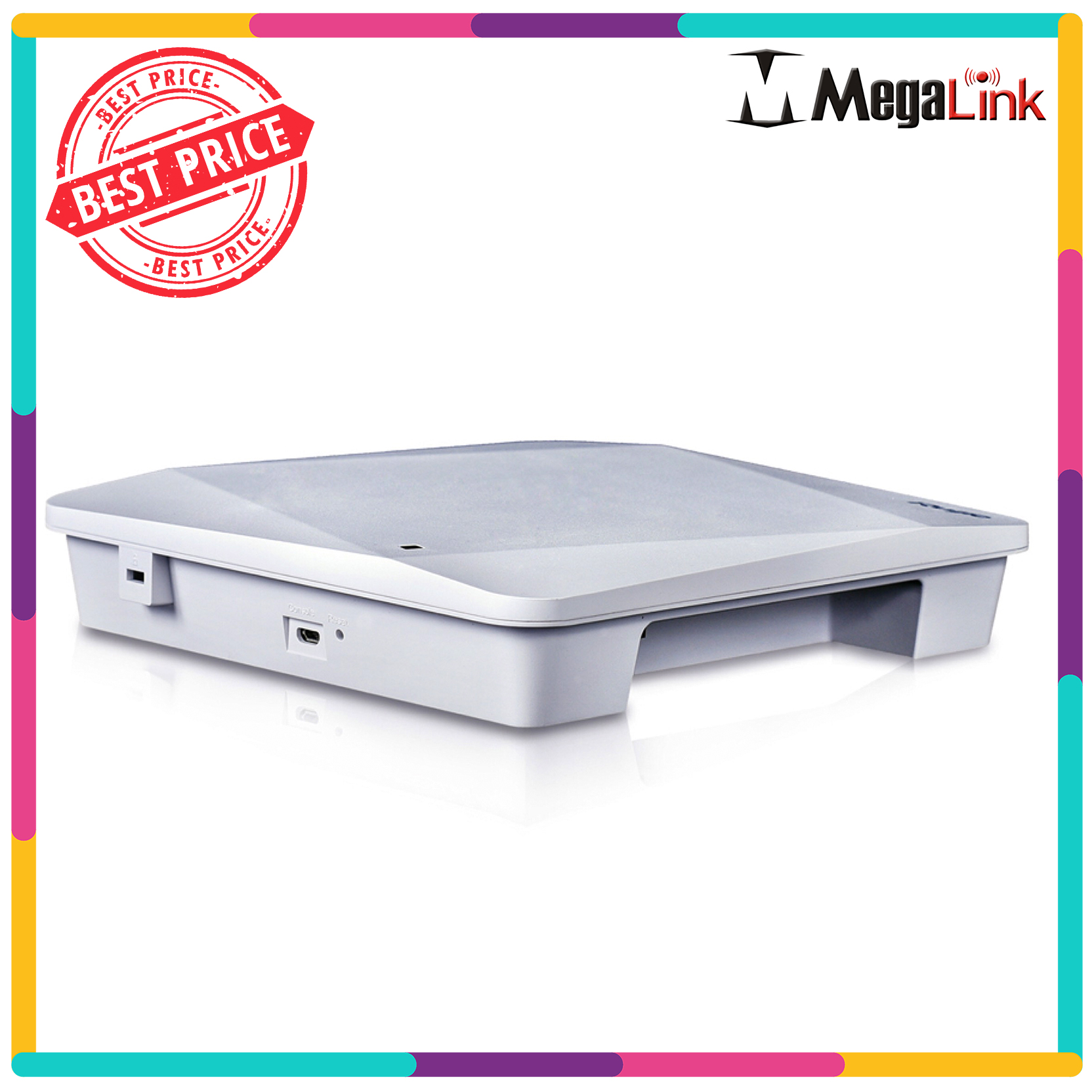

Ruijie RG-AP730-L Wireless Access Point Indoor

In today’s fast-changing business environment, a reliable and high-performance Wi-Fi infrastructure plays a vital role to ensure the business continuity.

Ruijie AP730-L with unique Wave 2 Tri-band deign is optimized for high density user in SME environment which catering upto 768 users without any issue.

--- Technical Specifications ---

Basic Spec :
- Radio : Tri-band (2.4G+5G+5G)
- Protocol : 802.11a/b/g/n/ac Wave 2
- Operating Bands :
--> 802.11b/g/n: 2.4GHz to 2.483GHz
--> 802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries)
- Antenna : Built-in Omni-directional Antenna
- Antenna Gain : 2.4G: 3dBi, 5G: 3dBi
- Max Throughput : Maximum throughput of 2.4G: 400Mbps, Maximum throughput of 5G: 1.73Gbps, Maximum throughput per AP: 2.13Gbps

Ports : 1 10/100/1000BASE-T Ethernet uplink Port LAN1 supports PoE+, 1 Console Port

Power Supply : local power supply (DC 48V/0.6A) PoE (802.3at), Power adapters sold separately

WLAN
Maximum clients per AP : 768
BSSID capacity : 48

Routing
- IPv4 address : Static IP address or DHCP reservation
- IPv6 address : Manual or automatic configuration
- Multicast Multicast to unicast conversion

Management and Maintenance
- Network management : SNMP v1/v2C/v3, Telnet, TFTP, Web management
- Cloud AC management : Support
- FAT/FIT switching : Support

External Characteristics
- Lock : Support
- LED Indicators : 1 LED (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to silent mode).
