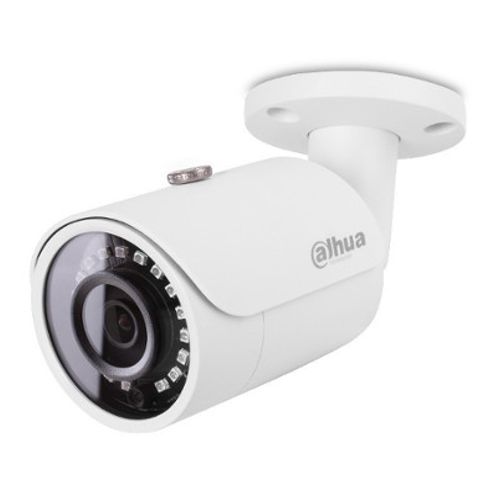

Deskripsi CAMERA CCTV DAHUA 1080P HAC HFW 1200SP
 1/3” 3Megapixel progressive scan CMOS
 H.264 & MJPEG dual-stream encoding
 Max 25/30fps@1080P(1920× 1080)
 DWDR, Day/Night(ICR), AWB, AGC, BLC
 Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
 3.6mm fixed lens (6mm optional)
 Max. IR LEDs Length 30m
 IP66, PoE

Model DH-IPC-HFW1200S
Camera
Image Sensor 1/3” 3Megapixel progressive scan CMOS
Effective Pixels 2048(H)x1536(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3(4)~1/10000
Min. Illumination Color: 0. 1Lux/F1.6; 0Lux/F1.6 (IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC /HLC /DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 2D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm (6mm optional)
Max Aperture F1.6(F1.6)
Focus Control Manual
Angle of View H: 71.9°/45.3°
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264H/H.264B/H.264/ MJPEG
Resolution 1080P(1920× 1080)/720P(1280× 720)/D1(704× 576/704× 480)
/CIF(352× 288/352× 240)
Frame Rate Main Stream 1080P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264H: 16K ~ 8192KbpsCompression N/A
Interface N/A
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP,
SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
Compatibility ONVIF, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
