Intel® Socket 1151 9th / 8th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

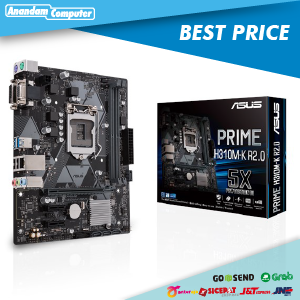

Intel® H310

2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Integrated Graphics Processor- Intel® HD Graphics support
Dukungan output Multi-VGA : DVI-D/D-Sub port
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
– Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
2 x PCIe 2.0 x1

Intel® H310 Chipset :
4 x SATA 6Gb/s port(s), gray,

Realtek® RTL8111H, 1 x Gigabit LAN

Realtek® ALC887 8-Channel High Definition Audio CODEC
– Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
– Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
– Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Intel® H310 Chipset :
4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
Intel® H310 Chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
